• Drum filters utilize a rotating screen to remove debris and moving bed filtration to strip ammonia and nitrites from the water

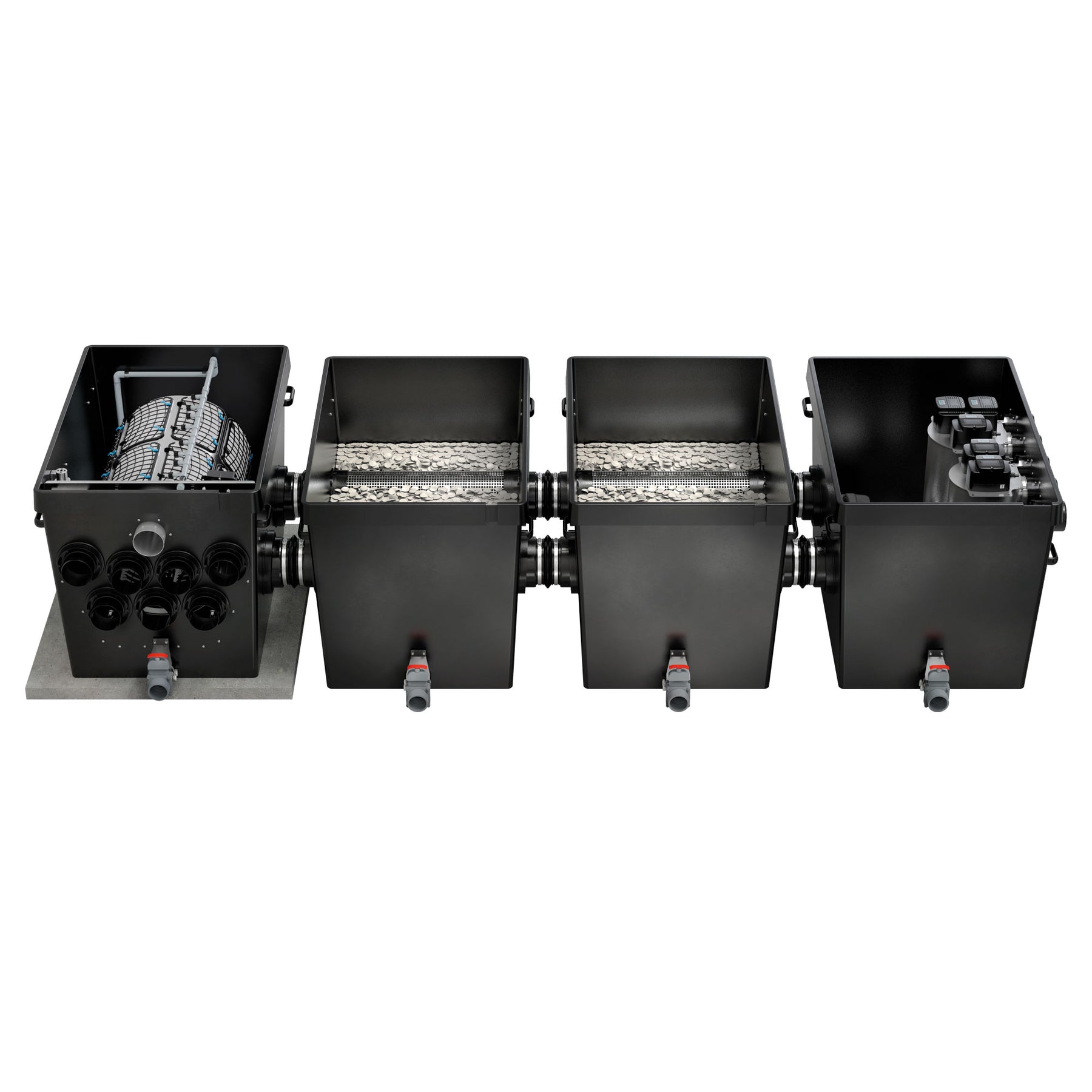

• Oase ProfiClear Premium XL filter systems are fully automatic, flow-through, self-cleaning modular filters that polish the water of koi and swim ponds

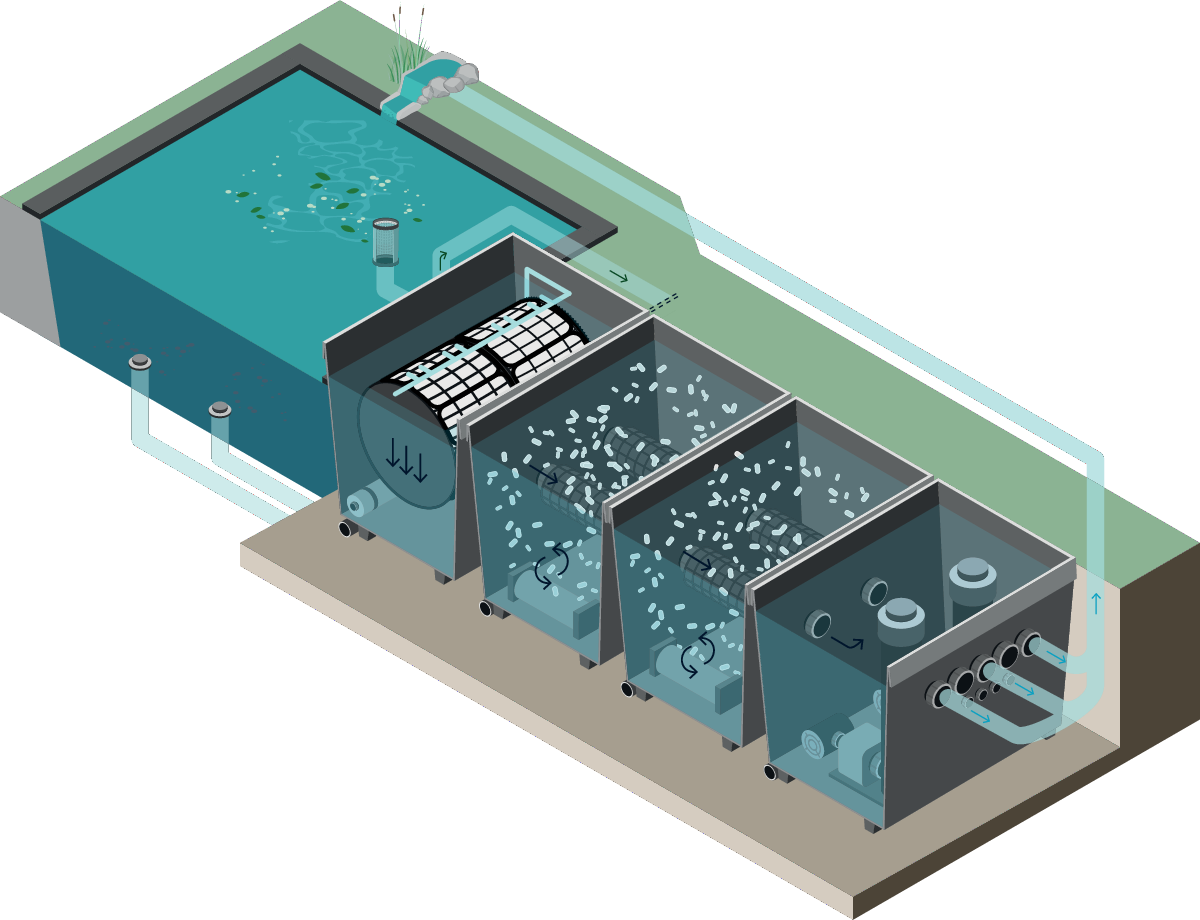

• Gravity-fed filters install below pond level, taking in dirty water at one end as clean, filtered water is pumped back to the pond from a pump housed in the discharge side

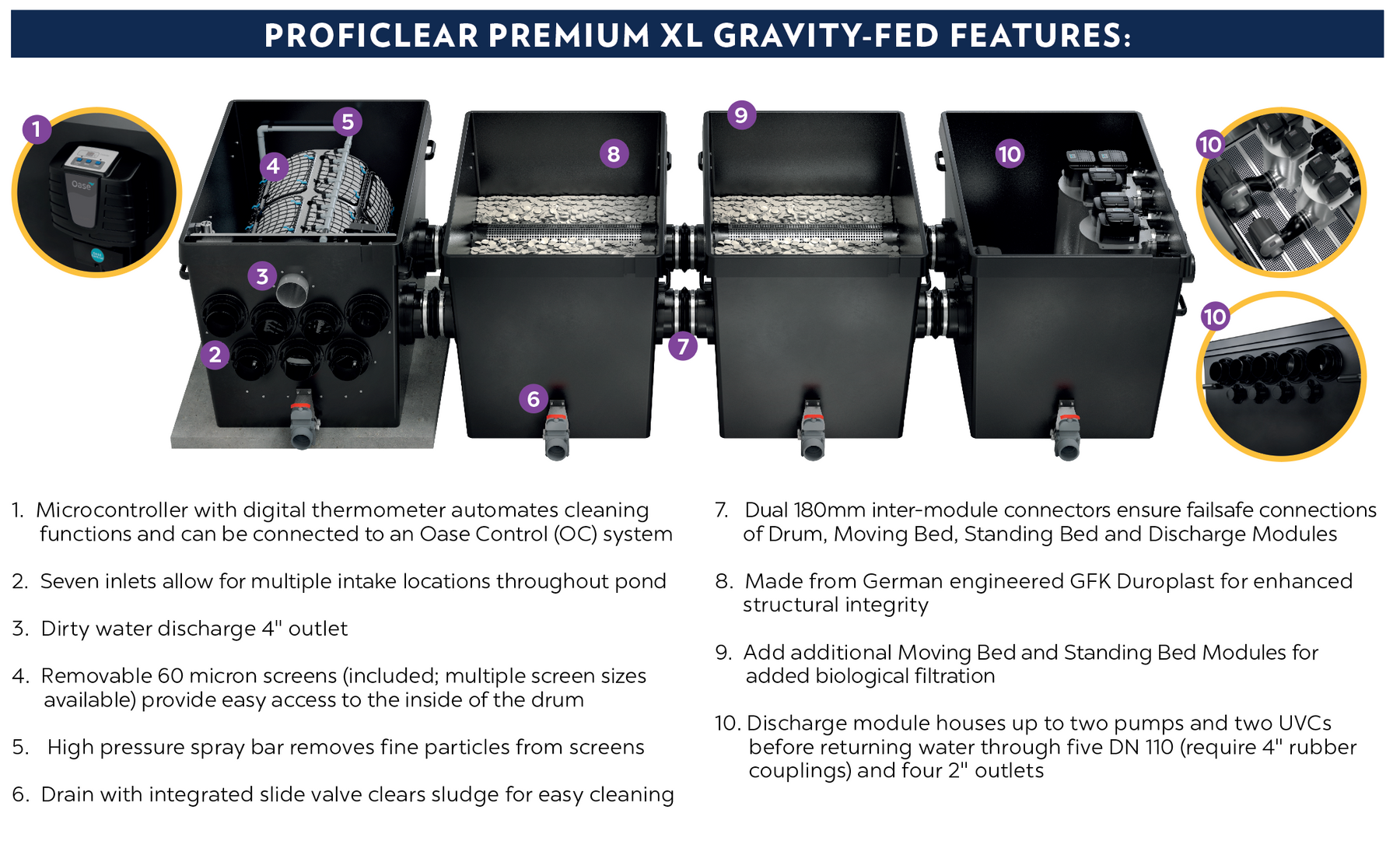

• ProfiClear Premium XL Gravity-fed filters mechanically screen, biologically filter and highly aerate pond water throughout modules

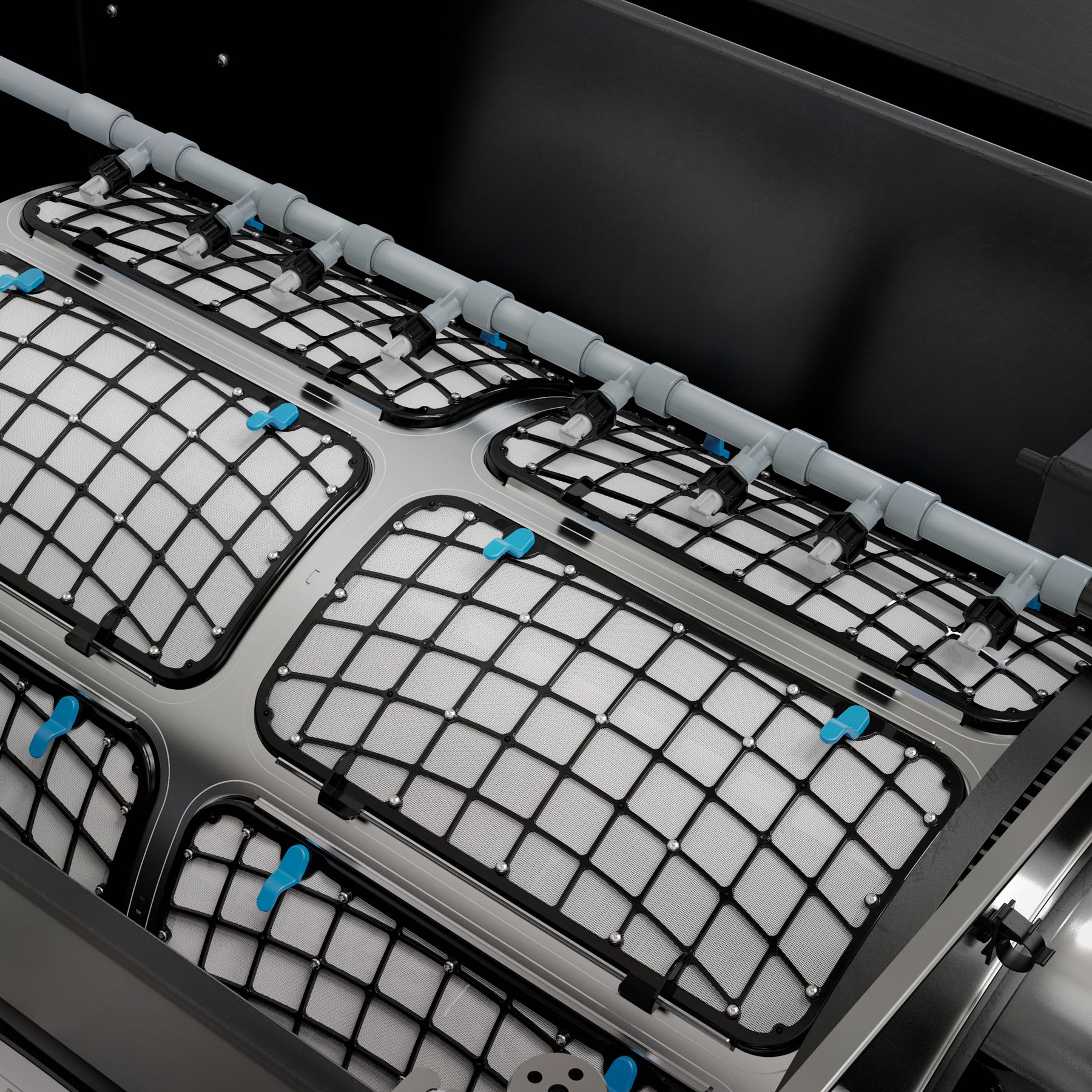

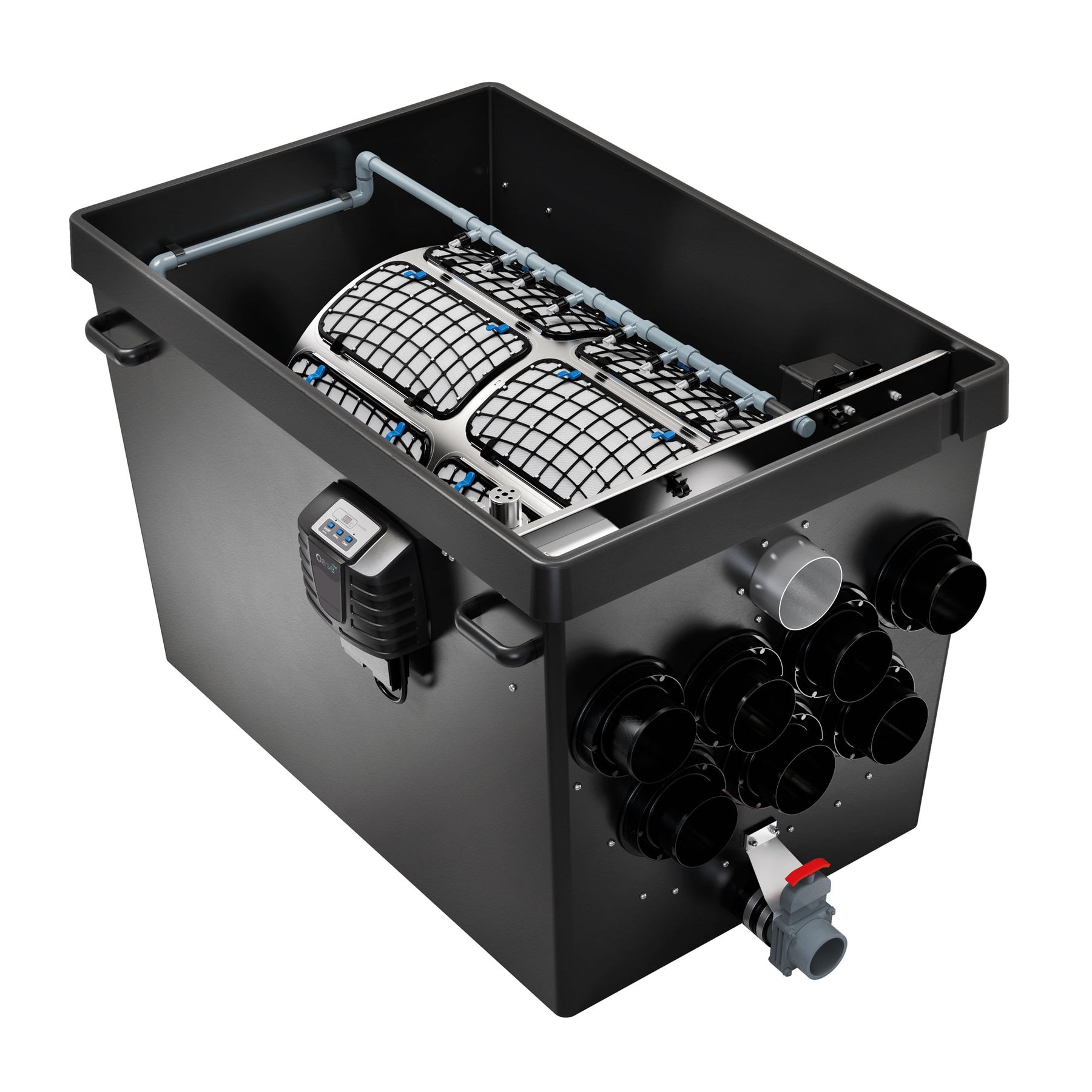

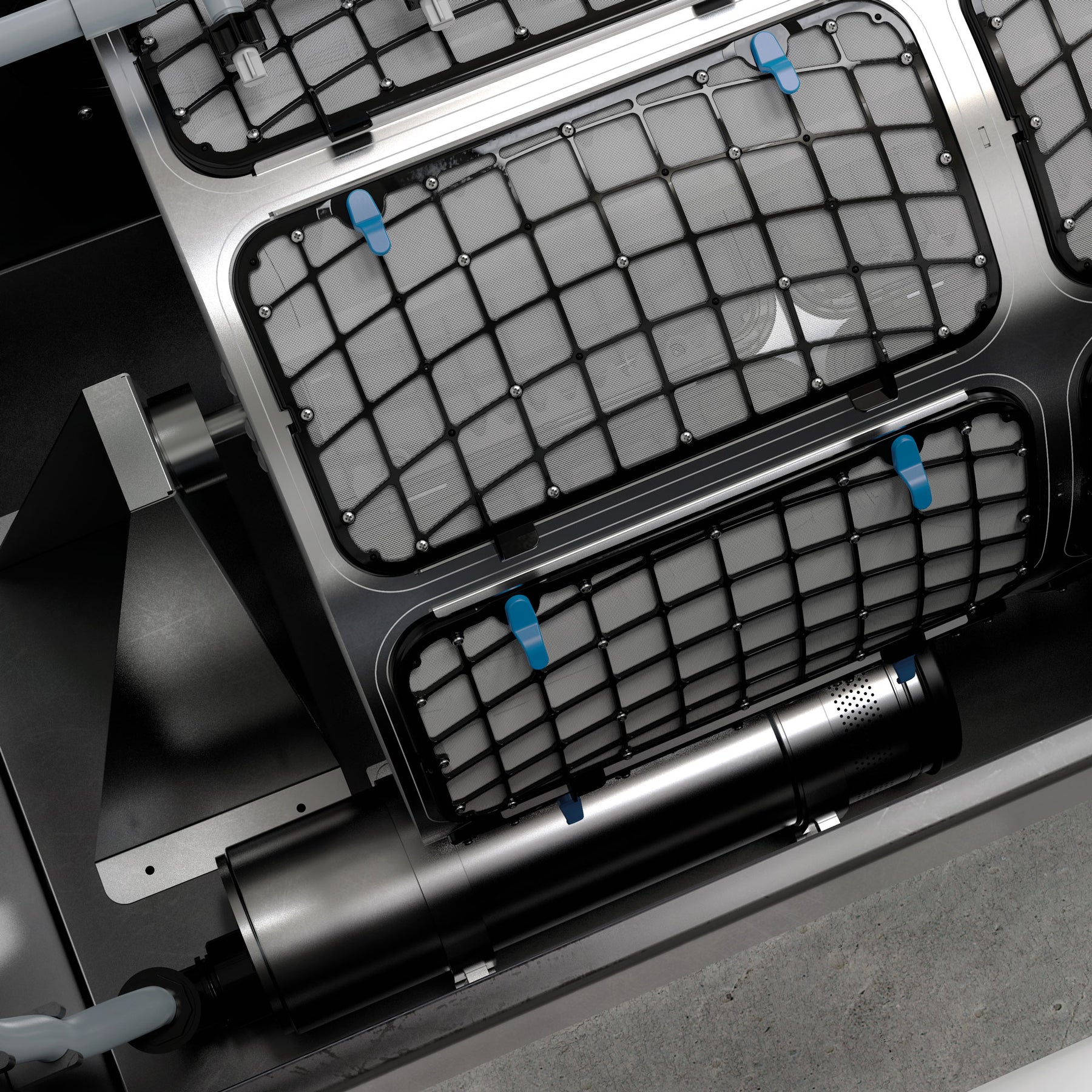

• The Drum Filter Module sieves and separates solids in incoming pond water down to 60 microns, automatically cleaning itself with a high pressure pump, via sensor or time interval, or manually

• All Modules are easily drained and flushed for cleaning and maintenance via integrated sludge drains

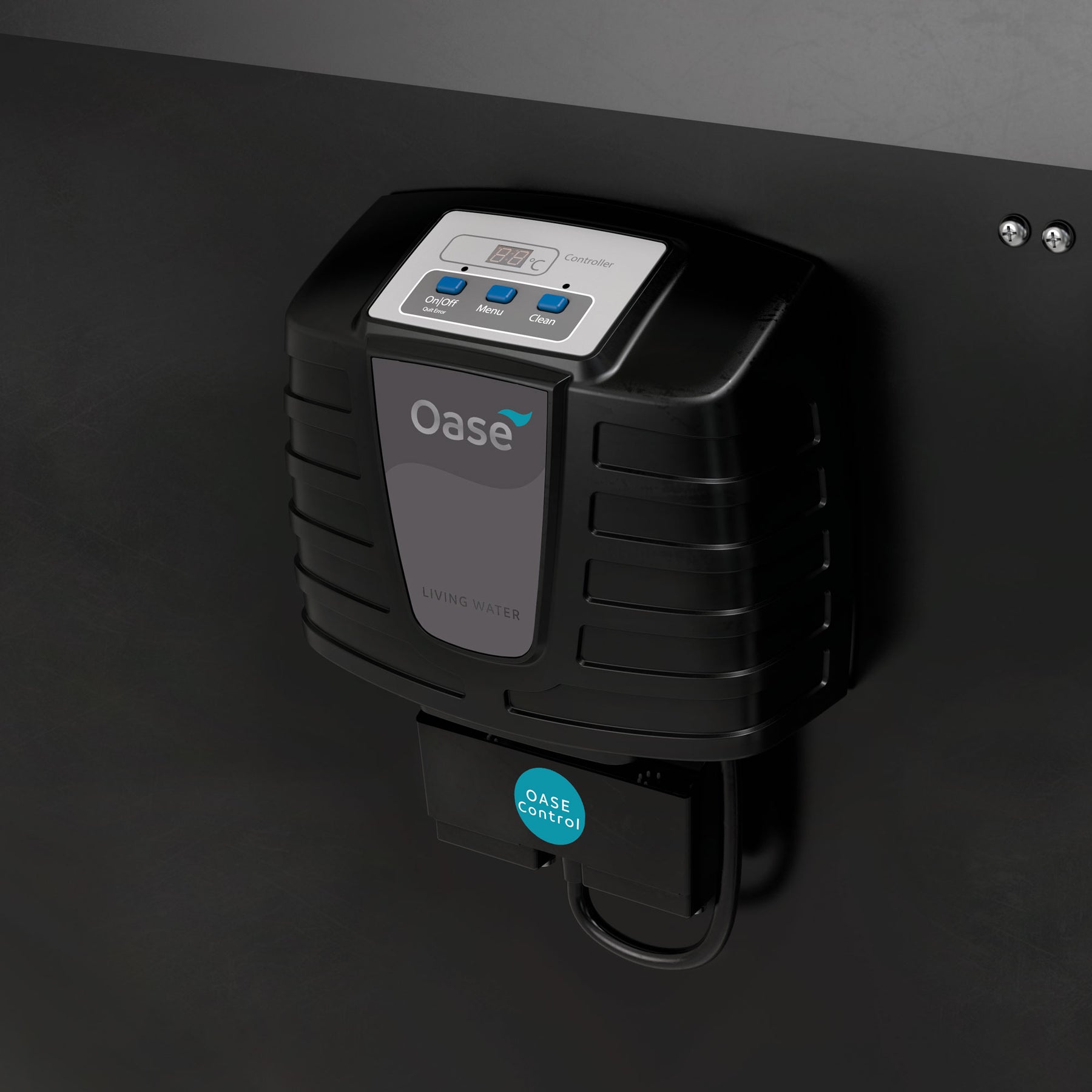

• XL Systems can be operated and monitored remotely via OASE Control App with the Oase Control System (Garden Cloud Controller sold separately)

Boxed Weight	280 lbs

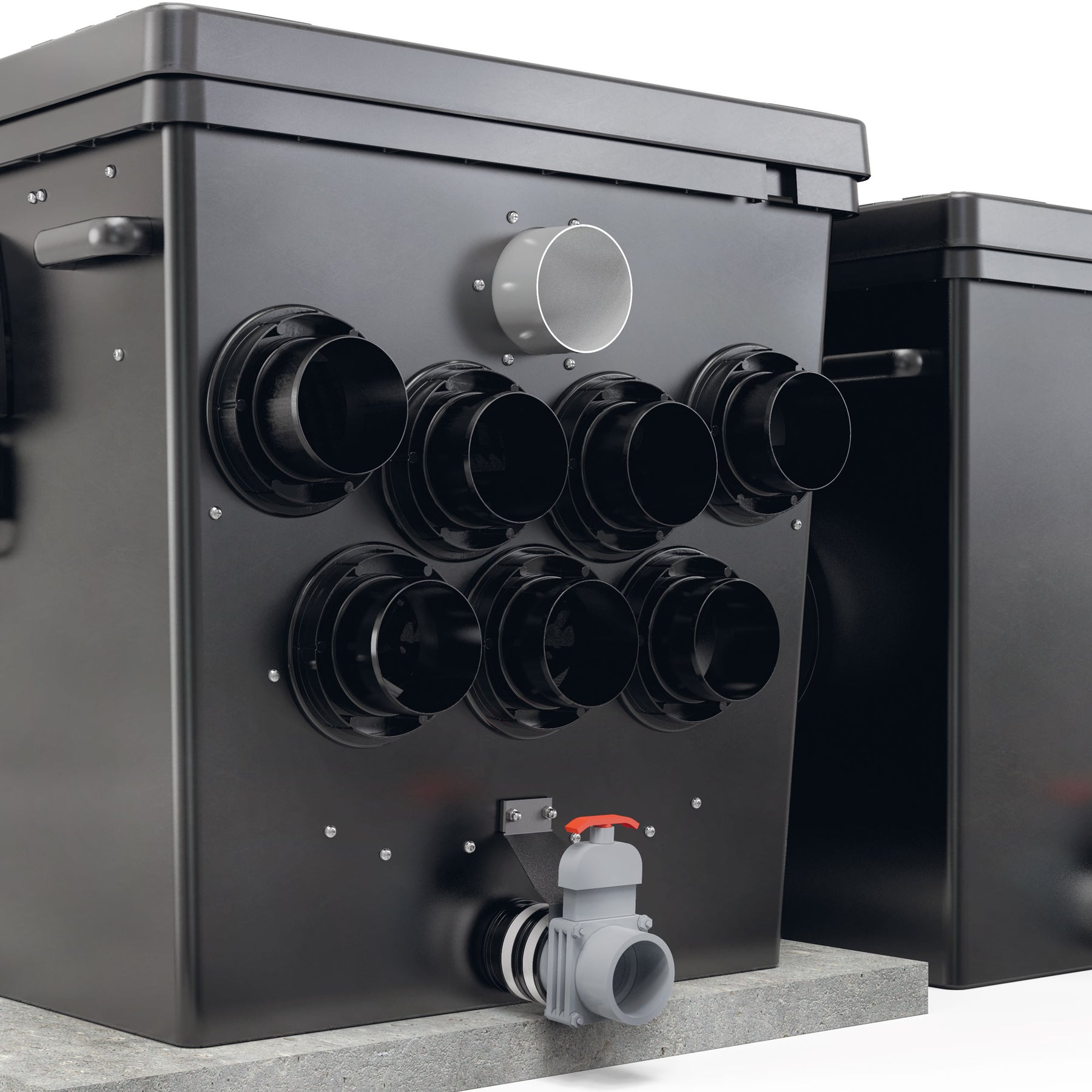

Inlet	(7) DN 110 - require 4" rubber couplings
Outlet	(2) 180mm
Waste Discharge Outlet	4" (DN 110)
Watts	5 / 1600 (cleaning)
Volts	120
Cord Length	16' + 16'
Warranty	2-year + 1

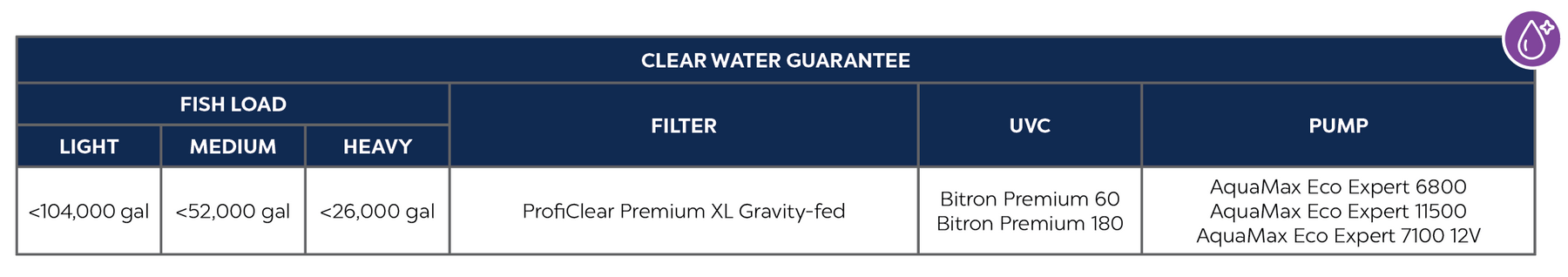

Pond Volume	Up to 104,000 gal
Max Flow	17,400 gph
Min Flow	6,600 gph
Coarse Debris Extraction	60 microns
Rinse Pump	101 psi
Requires	ProfiClear XL Moving Bed Module or ProfiClear XL Standing Bed Module and ProfiClear XL Pump-Fed Discharge Module

• Adapter (model # 35215)
• Anchor (model # 20284)
• Bearing (model # 16288)
• Gasket (model # 43756)
• Power Supply (model # 88787)
• Screen (model # 22005)
